problem mini gerbil 3

hello.

sorry for my English
I am encountering a problem mini gerbil 3.
I just installed everything according to the video, but the problem is that when I turn on my K40 nothing moves, the carriage return does not happen?
normally when turned on, the cart should go home?
same with Lightburd no way to make it move.
my installation is good, is it possible that it is the card the problem?
if I put my old card back everything works.

Thanks you

Phijol

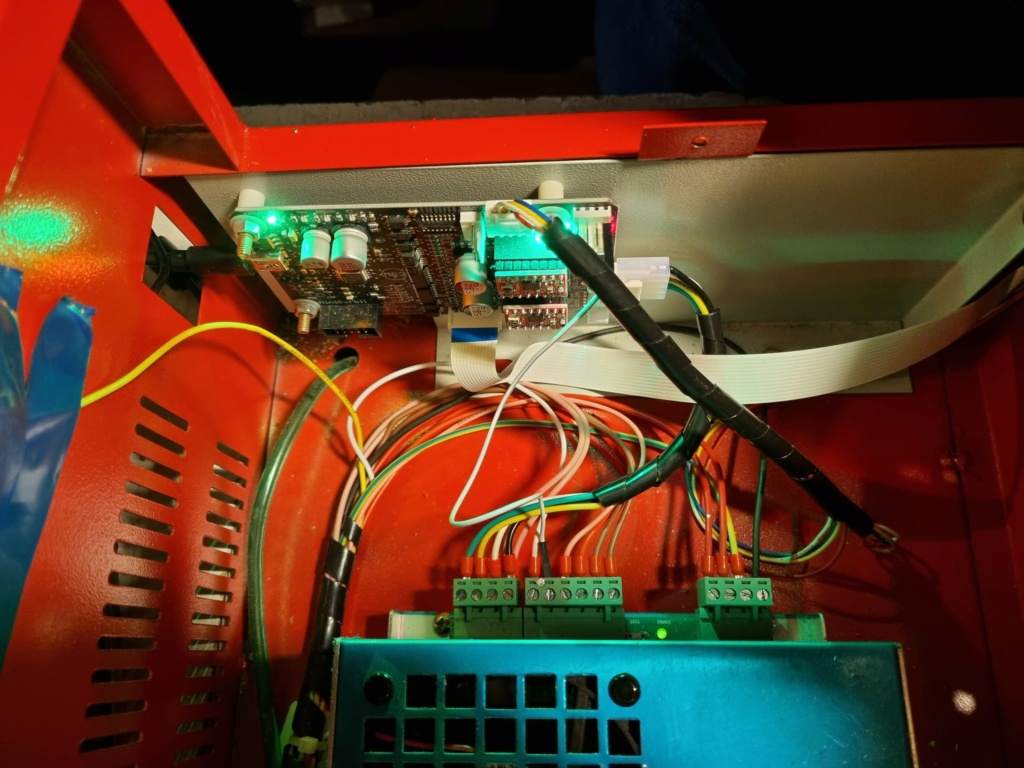

https://i68.servimg.com/u/f68/12/33/55/47/20220610.jpg

Hi Phijol,

could you please confirm you checked https://awesome.tech/mg3-troubleshooting/

The relevant sub-pages are

https://awesome.tech/mg3-mini-gerbil-debugging-no-response/

https://awesome.tech/mg3-mini-gerbil-debugging-movement/

Key question --> Are you getting any messages on the Lightburn console? If so, communication is functioning correctly. Please let me know.

Thankyou for the photo. It looks ok, the ribbon cable's blue tab looks quite big, is it fully inserted?

Regards,
Dan





Hello and thank you for the reply,
for

MG3 debugging – no response


yes everything is good led on.

for https://awesome.tech/mg3-troubleshooting/
I checked everything and nothing.

for https://awesome.tech/mg3-mini-gerbil-debugging-movement/
I checked everything and nothing.

the problem comes from the card.
Normally when you turn on the K40, the carriage should move and return home, and nothing happens.
all the diodes are well lit as indicated.
I've been looking for 15 days, I've followed everything on the site and still nothing.
Thanks a lot
phijol

Hi Phijol,

There are two modes for turn-on, auto homing and non-auto homing.

Can you confirm that homing still does not occur if you click on the home icon in Lightburn?

Thanks

Dan

yes I can confirm that homing does not happen if I click on the home icon in Lightburn.

ok, thanks. Any noise, any vibration from the motors?

Also, can you send me an image of the Lightburn Console screen to show you are successfully connecting?

Sorry for all the questions - we test every unit before shipping so it is unusual when it doesn't work at all. By asking these questions we can be sure it is a problem and get it sorted out as quickly and cheaply as possible.

Regards,

Dan

Philippe Joly has reacted to this post.
Philippe Joly

no problem for questions, it's normal.
in Lightburn an error because the engine does not move as I indicated.
Here's the photo

Uploaded files:
  • 20220626_110938.jpg

Thanks Phijol.

OK, I'm satisfied there's some kind of hardware issue. I'll contact you directly via email to work out a resolution.

Regards,

Dan

Thanks Danclowp1974



hello Danclowp1974

still no news by email for the card?
thank you



Hi Philippe, I emailed you straight after I posted 3 days ago, so must be some email issue. Could you please email me via dan 'at' awesome dot tech ?

Thanks

Dan

email sent to Customer Support <support@awesome.tech>

thank
